Cone Crusher Parts
Cone crusher is an advanced crusher with high power, large crushing ratio and high productivity. This equipment is often used in the metallurgical industry, construction industry, road construction industry, chemical industry and phosphate industry for fine crushing and ultra-fine crushing of hard rocks, ore, slag, refractory materials and other materials.
When the cone crusher is working, the motor rotates through the pulley to drive the counter shaft and the cone head assembly to rotate around a center line under the force of the eccentric bushing. So that the mantle of the cone crusher approaches and leaves the bowl liner on the adjusting sleeve. Then the ore is continuously impacted, squeezed and bent in the crushing cavity to be crushed. When unbreakable matters pass through the crushing cavity or the machine is overloaded for some reason, the hydraulic safety system will ensure that the discharge port is enlarged and the unbreakable matter is discharged from the crushing cavity. If the foreign matter is stuck in the ore discharge, the cavity cleaning system can be used to enlarge the discharge. Then the matter is removed from the crushing cavity. Under the action of the hydraulic system, the discharge port is automatically reset and the machine resumes working
We provide all kinds of cone crusher parts as follow:

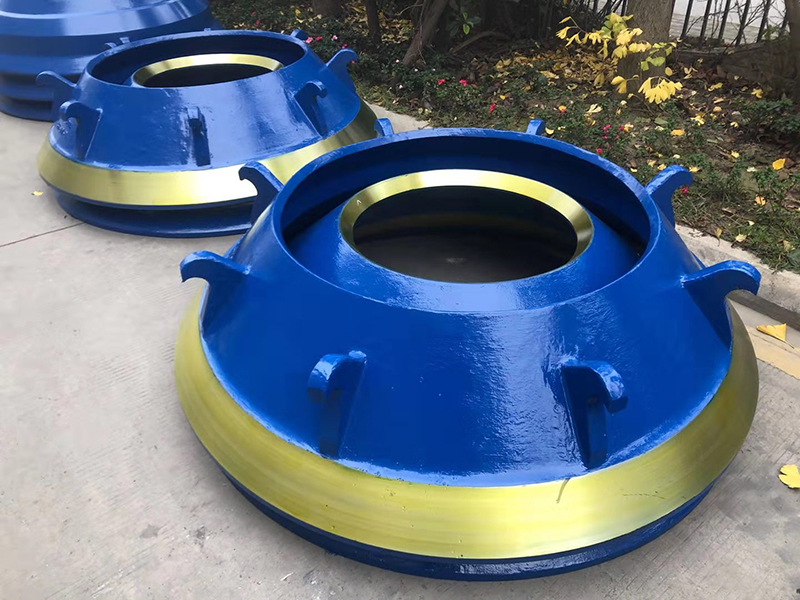

• Cone Crusher Mantle and bowl liner
• Cone Crusher Bowl Liners
• Cone Crusher Feed Cone
• Cone Crusher Main Frame Liner
• Cone Crusher Torch ring
• Cone Crusher Protection Cone
• Cone Crusher Arm Guard
• Cone Crusher Main Frame

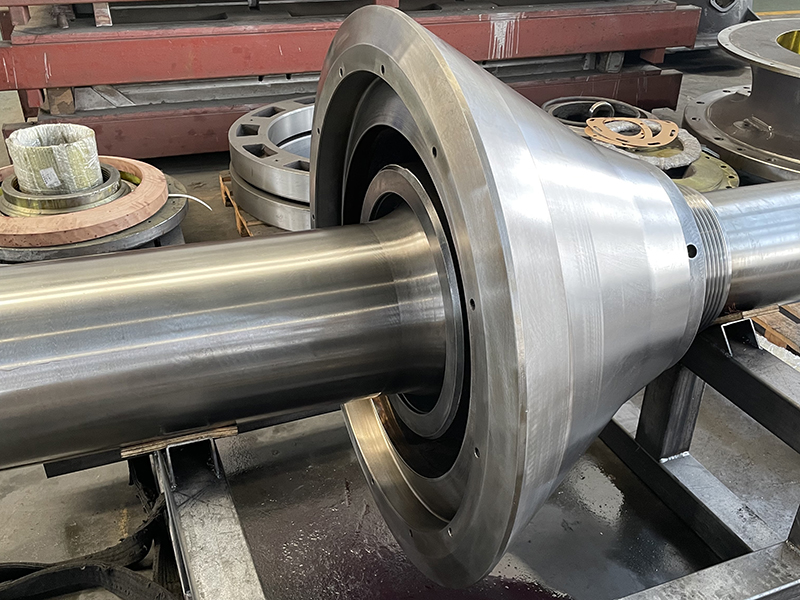

• Cone Crusher Main Shaft
• Cone Crusher Adjustment Ring
• Cone Crusher Clamping Ring
• Cone Crusher Dust seal ring
• Cone Crusher Counter Shaft Box
• Cone Crusher Countershaft Bushing
• Cone Crusher Pinion and bevel gear
• Cone Crusher Eccentric
• Cone Crusher Eccentric Bushing
• Cone Crusher Thrust Bearing
• Cone Crusher Counterweight and liner
• Cone Crusher Socket
• Cone Crusher Socket Liner
• Cone Crusher Cone head
• Cone Crusher Head Ball
• Cone Crusher Thrust Bearing
• Cone Crusher Locating Bar
Most Popular Cone Crusher Parts
Brand&model list
| HP Series | GP Series | MP Series | Sandvik | Symons | Trio |
| HP100 HP200 HP300 HP400 HP500 HP700 HP800 HP3 HP4 HP4 HP6 |
GP100 GP11 GP200 GP200S GP220 GP300 GP300S GP330 GP500 GP500S GP550 |
MP800 MP1000 MP1250 |
CH420/CS420 CH430/CS430 CH440/CS440 CH660/CS660 CH870/CH880/CH895 H2000/S2000 H2800/S2800 H3000/S3000 H3800/S3800 H4000/S4000 H4800/S4800 H6800/S6800 H7800/H8800 |
3FT 4FT 4.25FT 5.5FT 7FT |
TC36 TC51 TC66 TC84 |
| Kleeman | Telsmith | McColskey | Terex Pegson & Powerscreen | Terex Cedarapids | Nakayama |
| MCO 90i EVO2 MCO 110i PRO |
T300 T500 T900 36S, 36FC 38 44FC,44S 48S, 48FC 52S, 52FC, 52SBS 57FC, 57SBS 66SBS 68SBS |
MC200 MC300 MC400 C38 C44 |
1000 Maxtrak & 1000SR 1300 Maxtrak C1550 C1540 900 1200 1300 1500 24" Gyrasphere |
MVP280 MVP380 MVP450 MVP550 |
NSC200 NCC40H NCC42H NCC45H |
| Minyu | SBM / Shanghai Zenith | Shanbao | Henan Liming | KPI-JCI Kodiak | Allis Chalmers |
| MSP100 MSP200 MSP300 MSP400 MCC600 MCF600 MCC1000 MCF1000 MCS1000 MCSS1000 MCC1150 MCF1150 MCS1150 MCSS1150 MCC1300 MCF1300 MCS1300 MCSS1300 MCC1370 MCF1370 MCS1370 MCSS1370 MCC1500 MCF1500 MCS1500 MCSS1500 MCC1680 MCF1680 MCS1680 MCSS1680 |
HPT100 HPT200 HPT300 HPT400 HPT500 HPT800 HST160 HST250 HST315 HST450 HST560 HST750 CS75B/CS75D CS160B/CS160D CS240B/CS240D CS400B/CS400D CSB75/CSD75 CSB160/CSD160 CSB240/CSD240 |
PYB/PYZ/PYD600 PYB/PYZ/PYD900 PYB/PYZ/PYD1200 PYB/PYZ/PYD1750 PYB/PYZ/PYD2200 PYFB0607 PYFB0609 PYFB0610 PYFD0603 PYFD0605 PYFB0910 PYFB0917 PYFB0918 PYFD0904 PYFD0906 PYFD0907 PYFB1313 PYFB1324 PYFB1325 PYFD1306 PYFD1308 PYFD1310 PYFD1313 PYFB1620 PYFB1624 PYFB1626 PYFB1636 PYFD1607 PYFD1608 PYFD1613 PYFD1614 |
HPT100 HPT200 HPT300 HPT400 HPT500 HPT800 HST160 HST250 HST315 HST450 HST560 HST750 |
K200 K300 K400 K500 |
22" 36" 45" 51" 60" 72" 84" |
