Gyratory crushers handle massive feed sizes and deliver steady performance. Their smart features, like advanced lubrication and remote monitoring, have boosted operational efficiency by 25%. Many mining operations rely on High Mn Steel for crusher parts. Some even use cone crusher spare parts or a cone crusher main shaft assembly for repairs.
Key Takeaways
- Gyratory crushers use a spinning cone to crush large rocks continuously, making them ideal for high-volume mining operations.
- They offer higher capacity, better energy efficiency, and produce more uniform crushed material compared to jaw and cone crushers.
- Advanced features like hydraulic systems and digital monitoring improve safety, ease maintenance, and extend the crusher’s lifespan.
Gyratory Crusher Design and Working Principles
Definition and Core Terminology
A gyratory crusher is a powerful machine used in mining and heavy industry. Engineers invented it in the late 1800s to crush large rocks from mines. The machine uses a cone-shaped head that moves in a circular motion inside a steel chamber. This head squeezes rocks against the chamber walls, breaking them into smaller pieces. The process happens all around the cone, so the crusher works continuously. This design helps the machine handle huge amounts of material and produce a uniform product.
People in the mining industry use special terms when talking about gyratory crushers. Here are some common ones:
- Blocking: When a big rock gets stuck at the opening and stops other rocks from entering.
- Bridging: When smaller rocks pile up and block each other at the entrance.
- Choking: When material stops moving down inside the chamber, causing a backup.
- Choke-feed: Keeping the chamber full of rocks all the time for better crushing.
- Packing: When wet or sticky material clumps together inside the crusher, slowing things down.
- Ratio-of-reduction: The difference between the biggest rock that goes in and the biggest piece that comes out.
These terms help workers talk about problems and solutions when using a gyratory crusher.
Key Components of a Gyratory Crusher
The gyratory crusher has several important parts that work together to crush rocks. Each part has a special job:
- Crusher Head: This cone-shaped piece does the actual crushing. It is made of strong steel to handle heavy loads.
- Mantle: A tough layer covers the crusher head. It protects the head from wear and can be replaced when needed.
- Eccentric Assembly: This group of gears and shafts makes the crusher head move in a circle. It includes the main shaft, eccentric shaft, pinion gear, and bevel gear.
- Spider Assembly: This part holds up the crusher head and keeps it centered. It spreads out the weight and helps the head stay balanced.
- Drive Assembly: The motor, pulley, belt, and sheave work together to spin the crusher head.
- Hydroset: This hydraulic system adjusts the gap between the head and mantle. It helps keep the crusher working well as parts wear down.
Tip: The mantle and bowl liners are usually made of manganese steel. This metal lasts a long time and resists damage from hard rocks.
A table can help show how each part helps the crusher work:
| Component | Function | Material Used |
|---|---|---|
| Crusher Head | Crushes rocks | Cast Steel |
| Mantle | Protects crusher head | Manganese Steel |
| Eccentric Assembly | Moves crusher head in a circle | Steel, Hardened Gear |
| Spider Assembly | Supports and centers crusher head | Steel |
| Drive Assembly | Powers the crusher head | Steel, Motor Parts |
| Hydroset | Adjusts gap for crushing | Hydraulic System |
These parts make the gyratory crusher strong and reliable. The design helps the machine last a long time, even in tough mining conditions.
Crushing Mechanism and Operation
The gyratory crusher works in a special way. Here’s how the crushing process happens step by step:
- The feed material drops into the top of the crusher.
- The moving mantle squeezes the rock against the concave surface.
- The mantle moves away, letting the rock fall further down.
- The rock gets crushed again in the next cycle.
- The crushed material exits through the bottom opening.
This cycle repeats over and over. The crusher never stops working while material is present. The continuous motion means the gyratory crusher can handle large amounts of rock without interruption. Unlike jaw crushers, which use a back-and-forth motion, the gyratory crusher uses a spinning motion. This difference lets it crush bigger rocks and work faster.
Recent designs have made gyratory crushers even better. Some models allow workers to do maintenance from above, which is safer and quicker. Smart controls can adjust the mantle automatically, keeping the crusher efficient. Hydraulic systems help change parts faster and protect the machine from damage. Sensors watch for problems and help prevent breakdowns.
Note: The robust construction and advanced hydraulic systems make the gyratory crusher safe and easy to maintain. These features help the machine last longer and work better in harsh environments.
The gyratory crusher adapts to many types of rocks. It can handle hard, abrasive materials and large feed sizes. The machine produces fewer fine particles, which helps with downstream processing. Its strong frame and smart design keep it running smoothly, even when conditions get tough.
Gyratory Crusher Advantages and Comparisons
Gyratory Crusher vs. Jaw Crusher
People often wonder which crusher works best for big jobs. The answer depends on the type of material and the size of the operation. Jaw crushers use two jaws—one stays still, and the other moves back and forth. This design makes jaw crushers simple and easy to maintain. They fit well in smaller spaces and handle sticky or dirty materials better. Jaw crushers work best for small to medium projects and underground sites.
A gyratory crusher uses a cone-shaped head that spins inside a shell. This design allows it to crush rocks all the time, not just in short bursts. It can take in bigger rocks and process more material every hour. Workers can feed material from two sides, which speeds up the process. The gyratory crusher also produces a more uniform product shape.
Here’s a quick look at the differences:
| Design Aspect | Jaw Crusher Features | Gyratory Crusher Features |
|---|---|---|
| Crushing Mechanism | Fixed and moving jaw in a V-shaped chamber | Rotating cone-shaped head inside a shell for continuous crushing |
| Feed Opening | Large, single side | Long, double-sided, handles slabby material |
| Maintenance | Simple, easy to repair | Needs overhead hoist, more complex assembly |
| Capacity and Throughput | Lower, for smaller jobs | Higher, for large-scale operations |
| Product Shape | Less cubical | More cubical, annular discharge |
| Structural Strength | Strong box-frame, good for tough materials | Complex, needs more space |
| Motor and Drive | Flywheel stores energy | Uses higher speed motors, lower-ratio drives |
| Installation and Foundation | Higher foundation cost | Lower foundation cost |
| Feed Handling | Single feed side | Double feed sides |
| Handling Sticky/Dirty Feed | Better for sticky materials | Less suitable for sticky feed |
Gyratory crushers handle larger feed sizes and work faster. They can process up to 15,000 tons per hour, while jaw crushers max out around 1,500 tons per hour. The gyratory crusher uses less energy per ton, making it more efficient for big jobs. Mining companies choose gyratory crushers for high-volume, hard rock projects because they last longer and need less frequent repairs.

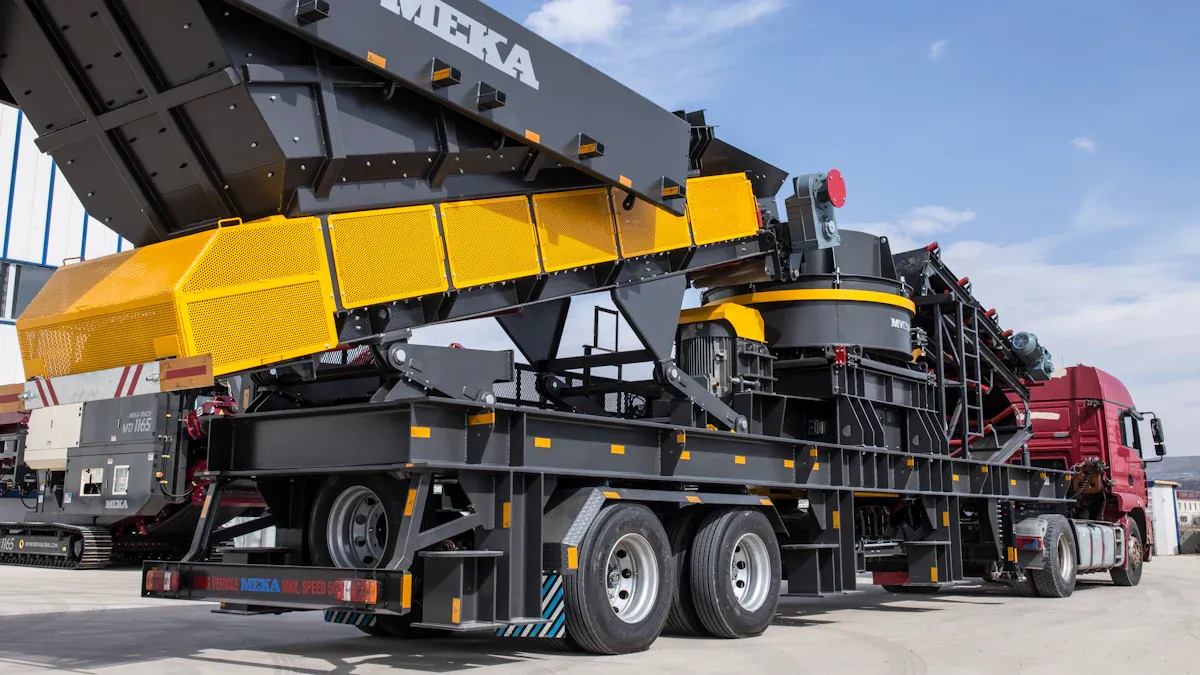

Gyratory Crusher vs. Cone Crusher
People sometimes mix up gyratory crushers and cone crushers. Both use a spinning head to crush rocks, but they serve different purposes. The gyratory crusher is bigger and works best for primary crushing. It can handle huge rocks and tough materials. The crushing chamber is larger, and the head moves in a circular motion. This design lets the gyratory crusher process more material at once.
Cone crushers are smaller and work better for secondary or tertiary crushing. They use an elliptical motion and run at higher speeds. Cone crushers can adjust to make different sizes of crushed rock. They cost less and are easier to maintain. Workers use cone crushers to make finer materials like gravel or sand.
Here’s a table to show the main differences:
| Aspect | Gyratory Crushers | Cone Crushers |
|---|---|---|
| Typical Application | Primary crushing of large, hard rocks | Secondary or tertiary crushing of smaller rocks |
| Feed Size | Handles larger feed sizes | Handles smaller feed sizes |
| Crushing Motion | Circular motion | Elliptical motion |
| Operational Speed | Lower speed (100-200 RPM) | Higher speed (500-600 RPM) |
| Product Size | More uniform, larger product sizes | Finer product sizes |
| Maintenance & Cost | Higher maintenance and operational costs | Easier maintenance and lower operational costs |
| Suitability | Robust, suited for hard materials and high throughput | Versatile, compact, suitable for smaller operations |
The gyratory crusher stands out for its ability to crush large rocks quickly and efficiently. It works well in big mining operations where high throughput is needed. Cone crushers fit better in smaller plants or when workers need to make fine gravel or sand.
Performance, Efficiency, and Maintenance Benefits
Mining companies love the gyratory crusher for its high output and reliability. It can process huge amounts of rock every hour, which keeps operations running smoothly. The crusher uses less energy per ton than other types, saving money and helping the environment. Modern designs include smart controls and sensors that watch for problems. These features help workers fix issues before they cause downtime.
Here are some key benefits:
- High productivity with continuous crushing and large feed capacity.
- Consistent product size for easier downstream processing.
- Energy efficiency, using up to 25% less power per ton than jaw crushers.
- Improved safety with top-service designs that allow maintenance from above.
- Digital monitoring for real-time control and predictive maintenance.
- Longer wear part life and less frequent replacements.
Mining companies report that the gyratory crusher helps them process more material, even when ore grades drop. The crusher’s robust design and advanced hydraulic systems make it safe and easy to maintain. Workers can plan maintenance and avoid unexpected shutdowns by using sensors and regular inspections.
Tip: Always keep the crushing chamber full to avoid choking and maximize efficiency.
The gyratory crusher works best in large mining and construction projects. It handles hard, abrasive materials and large feed sizes. The machine’s strong frame and smart features keep it running for years, making it a smart investment for high-volume operations.
Gyratory Crusher technology stands out for high capacity and reliable performance. User stories from mining sites show smoother operation and lower costs after chamber upgrades. Mining engineers should plan installations carefully, select advanced features, and prioritize safety for long-term success.
- Plan installation steps.
- Choose advanced features.
- Focus on safety.
FAQ
What materials can a gyratory crusher handle?
A gyratory crusher can crush hard rocks, ores, and even some softer materials. It works well with granite, limestone, and iron ore.
How often should workers replace the mantle and liners?
Most mining teams check wear parts every few months. They replace mantles and liners when they see deep grooves or cracks.
Is a gyratory crusher safe for workers to maintain?
Modern designs use hydraulic systems and sensors. These features help workers perform maintenance safely and spot problems early.
